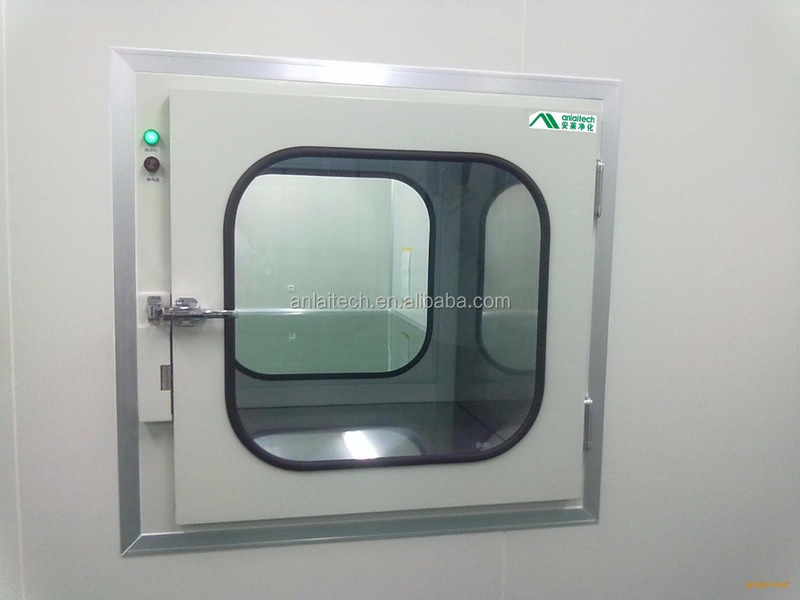

Pass Boxes
Controlling the ingress of particulate contamination into cleanrooms and other controlled environments is paramount in order to maintain the integrity of products and processes. Personnel traffic is the most important factor which must be controlled. Anlaitech Pass Boxes and Transfer Hatches are an effective solution as they allow materials to be transferred into the controlled environment without actual personnel movement. They may also be used to protect the external environment from egress of contamination, for example, in biological safety laboratory applications.
Key Benefits:
Reliable Mechanical Interlock
SS 304 base surface
Acrylic doors
Features
Mechanical interlock is reliable, maintenance-free, fail safe and maintains cleanroom integrity by preventing both doors from being opened at the same time.
All Anlaitech products are manufactured for the most demanding controlled environment applications.
All components are designed for maximum chemical resistance and enhanced durability for a long service life.
The main body of the pass box is constructed of industrial-grade electrogalvanized steel.
The pass box base surface is constructed of stainless steel, making the work zone easy to clean.
Acrylic doors provide a clear view of the internal chamber.
Standard 1 year warranty.
Model | AL-APB-500 | AL-APB-600 | AL-APB-750 | AL-APB-800 | |
External Size (W×D×H) mm | 840×500×1350 | 940×600×1450 | 1090×750×1600 | 1140×800×1650 | |
Internal Size (W×D×H) mm | 500×500×500 | 600×600×600 | 750×750×750 | 800×800×800 | |
Noise Level(dB) | <62 | <62 | <62 | <62 | |
Stainless Steel Nozzle | 4PCS | 6PCS | 6PCS | 6PCS | |
Wind Speed | ≥25m/s | ≥25m/s | ≥25m/s | ≥25m/s | |
Pre-filter | Size (W×D×H) mm | 525×275×17 | 560×275×17 | 560×275×17 | 560×275×17 |
Efficiency | G4 | G4 | G4 | G4 | |
HEPA Filter | Size (W×D×H) mm | 484×484×69 | 630×630×69 | 630×630×69 | 630×630×69 |
Efficiency | 99.99% 0.3µm | 99.99% 0.3µm | 99.99% 0.3µm | 99.99% 0.3µm | |
Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
Total Power | 750W | 750W | 750W | 750W |
Pass Box in producing:
Gargo Pass box type:
Soft touch Microelectronics Control System:
Stainless steel 304 big airflow nozzles:
Packing for exporting:
Factory testing (all the sets you ordered) :
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA air filter: each one should be replacement in each half and one years.
Standard export packing:
--Stretch film strapped whole cabinet,
--Foam inside protected,
--Plywood case solid fixed
--European standard bottom tray
