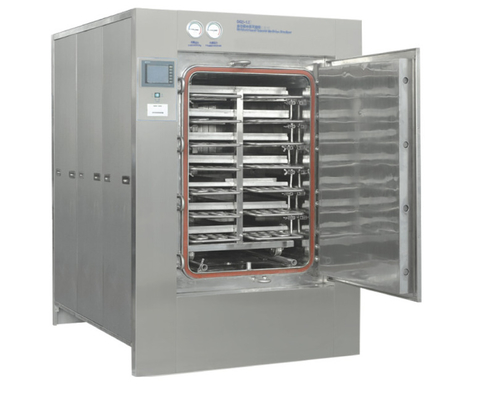

DZG Multifunctional Chinese Medicine Autoclave Food Steam Sterilizer Machine
| DZG | Former sterilization for Chinese herbal medicine usually adopts cobalt60, ethylene oxide, alcohol; microwave, ozone etc. These methods are hard to guarantee medicine’s property, easy to have remains or lead to expensive caste. By testing, steam is the most suitable method for sterilizing herbal medicine. So we designed this series of sterilizers, with horizontal and rectangular shape. By means of in-and-out steam heating, the space of the cabinet can be fully utilized. Ln the cabinet, there is a special of dump proof equipment to eliminate effectively lump phenomena of herbal powder caused by traditional steam sterilization. It is applicable to Chinese Pharmaceutical Factories. |
| Structure&Capability&Characteristics | ·National patent door interlock The heat preservation layer is made by polyurethane material and pearl rock wool 1. Mould, microbial<10cfu/g 2. Powder is inattentive and difficult to agglomerate(different breeds different condition) 3. Water contain≤3%(drying of the product) 4. Difficult to change color |
| Function | It is suitable for flavor, Chinese medical powder, healthy product, rice, fish powder, potherb, tea, etc. |
Design pressure | 0.245Mpa | Vacuum | -0.095Mpa |
Working Pressure | 0.22Mpa | Steam Source Pressure | 0.4-0.6Mpa |
Design Temperature | 139℃ | Water Source Pressure | 0.1-0.3Mpa |
Working Temperature | 134℃ | Compressed Air Pressure | 0.5-0.7Mpa |
Heat Equilibrium | ≤±1℃ |
|
|
Specifications | Overall Dimensions | Chamber Size | Steam Consumption | Power | Loading(kg) | Car | Cooling Water consumption | Net Weight |
DZG-0.36 | 1195*1220*1720 | 1000*600*600 | 50 | 1.5 | 60/40 | - | 400 | 760 |
DZG-0.6 | 1245*1300*1880 | 1050*680*850 | 60 | 2.0 | 120/80 | - | 500 | 1100 |
DZG-0.8 | 1595*1300*1880 | 1400*680*850 | 70 | 3.0 | 160/110 | 1 | 700 | 1300 |
DZG-1.2 | 1695*1370*1960 | 1500*750*1100 | 80 | 3.0 | 250/180 | 2 | 700 | 1900 |
DZG-2.5 | 3195*1370*1960 | 3000*750*1100 | 160 | 4.5 | 500/350 | 4 | 1200 | 2800 |
DZG-5.0 | 3635*1800*2200 | 3400*1000*1500 | 350 | 7.5 | 1000/700 | 4 | 1600 | 4500 |
DZG-8.0 | 5635*1800*2200 | 5400*100*1500 | 450 | 7.5 | 1600/1100 | 6 | 1600 | 7500 |
