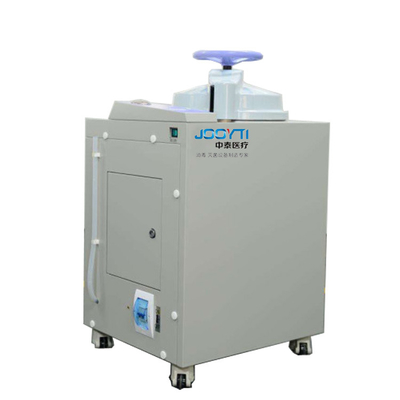

Medical Equipment Vertical Steam Sterilizer laboratory
automatic autoclave steam sterilizing machine
Product Description
Techanical Data:
Model | VS-50C | VS-75C | VS-100C |
Volume | 50L | 75L | 100L |
Power | 4.4KW | 4.7KW | 5.2KW |
Net weight | 80kg | 85kg | 100kg |
Inner size | 386x515 mm | 386x695 mm | 386x875 mm |
Total size | 550x640x980 mm | 550x640x1080 mm | 550x640x1280 mm |
Number of basket | 1 | 2 | 2 |
Basket size | Φ365×360 | Φ365×360 | Φ365×360 |
Features:
1. rated working pressure 0.22Mpa
2. rated working temperature 134℃
3. use temperature 105-136℃
4. The product meets the YY1007-2010 standard and can provide the test report of the accredited inspection center of the State Food and Drug Administration.
5. The sterilization chamber and the sterilization basket are made of high quality SUS304 stainless steel , which is polished internally and circulated in soda and water.
6. Hand-wheel-type translation door structure, with door safety interlocking device and door detection device,the door can not be opened under pressure, the door closed in place program can not run.
7. It has anti-dry-burning alarm, over-pressure self-discharge, over-temperature protection and power safetyprotection. All alarms have sound and light warning.
8.LED digital display temperature, time and failure alarm code in sterilizing chamber.
9. self expanding silicone rubber seal has good sealing effect and long service life.
10. Solenoid valves use imported brands. Pressure gauges and safety valves provide mandatory
information such as numbers, nameplates and certificates in accordance with national standards. 11. Microcomputer control, with equipment, dressing, liquid and other five fixed procedures, two custom procedures, and drying function.
12. The whole process of water injection, heating, sterilization, exhaust and drying of the equipment is fullyautomated. After sterilization, sound and light reminders are given.
13. temperature uniformity of sterilization chamber: + 1 ℃, dry temperature range: 50-120 ℃.
14. pulse exhaust technology to ensure steam saturation.
15. all protective door cover, hinge and shaft are not exposed.
16. with fast exhaust and slow exhaust function, avoid sterilization liquid overflow.
17. there is a quick maintenance window, electrical parts maintenance without the need to dismantle the hood.
Equipment Configuration List
Parts name | Brand | Model | Material | Remarks |
Pressure gauge | Shanghai Yuntai | 1.6 stage precision | SUS304 |
|
Solenoid valve | Japan CKD | AB31 | Brass |
|
Safety valve | Ningbo Yongan | Opening pressure 0.28 | Brass |
|
Temperature sensor | Shanghai Xingning | PT100 | SUS304 |
|
Heating tube | Ningguo Tiancheng | DCG | SUS304 |
|
electromagnetic relay | OMRON | MY3N-J |
|
|
Circuit board | Shandong Boke |
|
|
|
Air circuit breaker | Chint | DZ47 |
|
|
AC contactor | Chint | CJX2 |
|
