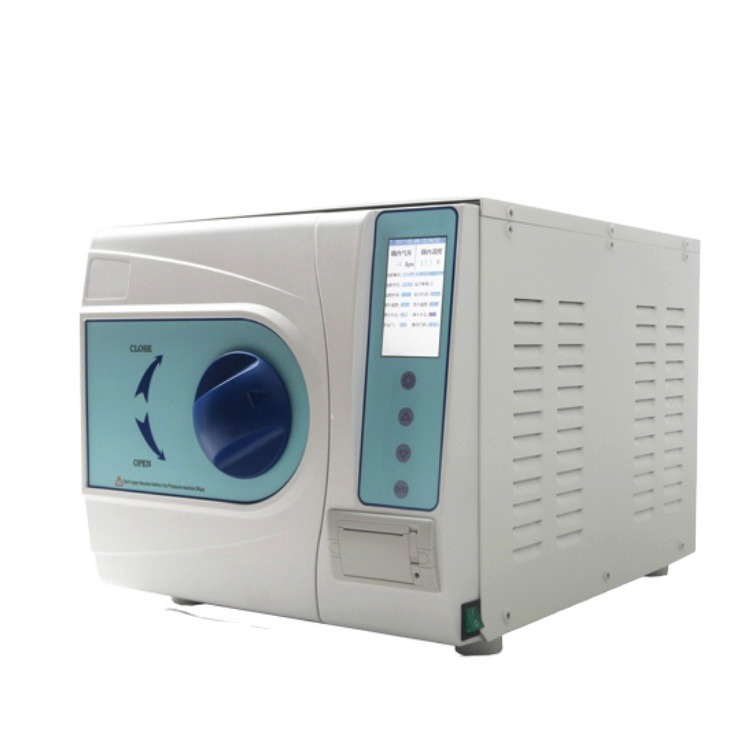

More Details for Autoclave Machine Sterilizer
Features
The accessories of Sterilization include: Sterilization Chamber, Door unit, Insulation unit, Pipe system, Safety valve, Control system, Storage tanks, waste water tank, Steam generator and so on.
3 time pulsating vacuum make less residual air in chamber to Ensure better sterilization effect.
LCD screen show all sterilization data, which ensure better control of the sterilization process
Safety valve installed in sterilizer, when pressure beyond 0.27Mpa. The balance pressure can be released by safety valve to ensure the operate safety.
The instrument have self-protect feature. When water tank or drainage water tank
is full, the sterilization will complete pending sterilization in case the
implementation of sterilization procedures , But the machine can not start to next operation unless add water or drainage. There will be buzzer to remind users to add water or drainage
This product can be applied in the tooth device, operation device, Sanitary
Material and other heat-resisting articles existing in the Dept. of Stomatology,
Ophthalmology Surgery and lab.
Tech. Parameter
Inner chamber of the Sterilizer (Diameter X Depth):
12L:200mm X 360mm 16L: 229mm X 360mm
18L:245mm X 350mm 23L: 245mm X150MM
Sterilizer product size(length*width*height):
23L:660mm X 442mm X 380mm
18L:540mm X 442mm X 380mm
Related Voltage: 220V/50Hz, 110V/60Hz
Related Power: 1800w
Sterilization(Pressure/Temperature):
90~130KPa/121℃(standard atmospheric pressure)
20~230KPa/134℃(standard atmospheric pressure)
Safety Grade: Grade I
Fuse: T15A
Water tank Capacity: 2L
Each cycle water consumption: 0.3L
Minimum tank level alarm: 0.5L
Operate Temperature: 0~40℃
