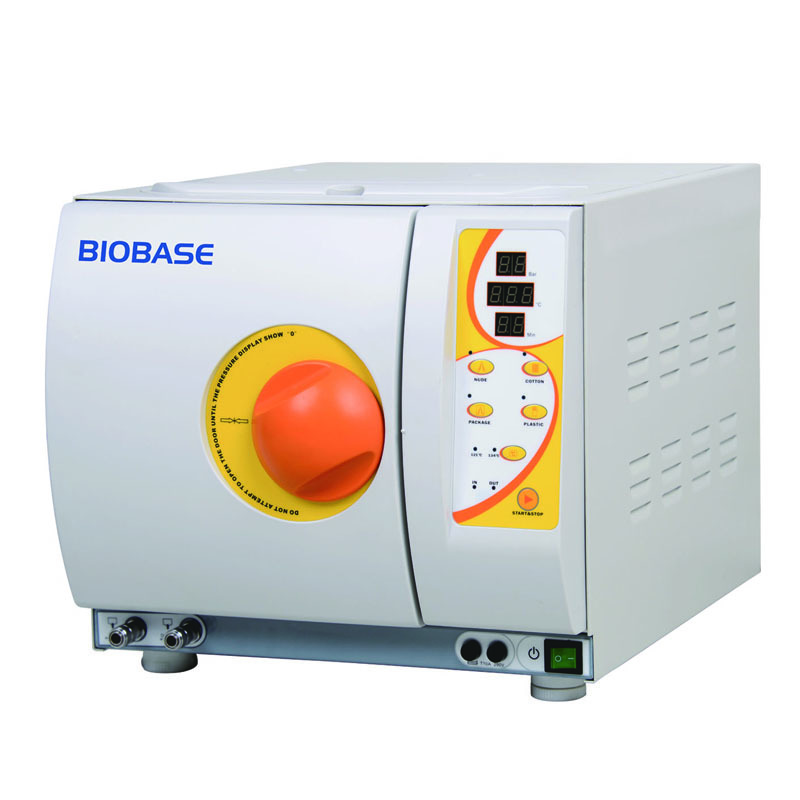

Table top autoclave Class N series
Features:
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Sliding door design for easy secure operating-for BKM-Z2.
4. Microprocessor control, LCD or LED display and modularized panel for easy operation.
5. Automatic malfunction detection system makes easy maintaining.
Technical Parameters:
| Model | BKM-Z2N | BKM-Z7N | BKM-Z10N | BKM-Z12N | BKM-Z18N | BKM-Z24N |
| Sterilization Class | CLASS N | |||||
| Sterilization Temp. | 121℃, 134℃ | |||||
| Drying procedure | Heating dry | |||||
| Display | High-light LED tube display | |||||
| Testing System | Bowie&Dick, Steam penetration test | |||||
| Control Precision | Temperature: 1℃ | |||||
| Pressure: 0.1bar | ||||||
| Sterilization Data | Optional Mini printer | |||||
| Safety System | Relief valve | |||||
| Hand lock door | ||||||
| Pressure lock system | ||||||
| Pressure or temperature over load protection | ||||||
| Alarm system | ||||||
| Water Supply System | Build-in water tank easy to clean | |||||
| Tray Holder | SS basket, SS shelf | |||||
| Chamber | Medical stainless steel 304 | |||||
| Max working pressure:2.3bar | ||||||
| Min working pressure: -0.9bar | ||||||
| Max temperature: 145℃ | ||||||
| Operation Temp. | 5~40℃ | |||||
| Noise | <50db | |||||
| Water consumption in one cycle | 0.12L~0.16L | 0.16L~0.18L | ||||
| Power supply | 110/220V±10%, 60/50Hz | |||||
| Power consumption | 1200W | 1400W | 1400W | 1400W | 1500W | 1700W |
| Chamber Size(mm) | φ88*175 | φ170*320 | φ192*320 | φ192×340 | φ245×360 | φ245*470 |
| External Size(mm) | 350*284*376 | 540*370*360 | 540*370*360 | 560X450X400 | 560*450*400 | 670*450*400 |
| Packing Size(mm) | 415*345*441 | 615*440*425 | 615*440*425 | 660×525×495 | 660*525*495 | 770*525*495 |
| Net Weight | 26kg | 37kg | 40kg | 43kg | 47kg | 53kg |
Accessories:
Stainless steel chamber Stainless steel shelf and trays
Established in 1999, owning more than 1000 employees and 20000 square meters.
15 years production experience and 50 professional engineers
the package : Bubble film +cotton+standard export wooden case.
the delivery : 7-15 days after the payment
Free
Free offer trial video for your sample
Free training video with machine
Pre-sales service
24hours online to ensure quick response to customers' inquiry or online message.
Guide customers to choose the best suitable machine model.
Offer detailed specification and competitive prices.
Customization available for special specification products.
Sample testing support.
View our Factory.
After-sales service
Training how to install and use the machine.
Engineers available to service machinery overseas.
In time response to customers technical problems.
12-month warranty
FAQ for better and easy cooperation
1.How about the sample of Biobase product?
We could send you the samples but the freight and the sample are charged.
2.How about Biobase delivery time?
Within 7-15 workdays after receiving deposit.
3.How about Biobase validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant
4.What's thr shipping port?
FOB to QingDao Port,China(also can ship according to customers' request.
5.How about the package?
Bubble film +cotton+standard export wooden case.
